Single or Twins Ultrasound transducer Fetal Doppler Monitor Maternal

Single or Twins Ultrasound transducer Fetal Doppler Monitor Maternal

Model number: CMS800G

Features:

1.Single or Twins Ultrasound transducer

2.Data Graph and Trend Table Review of both mother and fetal

3.Built-in thermal printer

4. Built-in Network capability for connect with central monitoring software

5. Programmable alarms

6. All the colors and looks or the parameters can be customsized

7. Multi-face views, select focus on mother or fetal

8. Storage of patient information and data

Technical specifications:

1. Safety

2. Meet the requirment of IEC60601 series

3. Type of Protection:Class II with internal electirc power supply

4. Degree of Protection:BF

5. Dimention and Weight

6. Dimention:92(W)x82(H)x22(D)mm

7. Weight:3.6kg(with battery)

Operation Environment:

1. Temperature:0°C~ +40°C

2. Humidity:15% ~ 95%

Storage Environment:

1. Temperature:-20°C~ +60°C

2. 'Humidity:10% ~ 95%

3. Patient Range:Pregnant Adult

FHR:

1. Ultrasound Frequency:2MHz

2. Range:50 ~ 210 bpm

3. Resolution:1bmp

4. Accuracy:±2bmp

TOCO:

1. Range:0 ~ 100%

2. Resolution:1%

3. Non-linear Error:<=±8%

4. Zero control:Manual

FETAL MOVEMENT:

1. Manual fetal movement mark

SPO2:

1. Measurement Range:0 ~ 100%

2. Resolution:1%

3. Accuracy:±2%(70%~100%, Adult/Pediatric, non-motion)

±3%(70%~100%, Neonate, non-motion)0% ~ 69% unspecified

4. Alarm Range:0% ~ 100%

5. Refreshing Rate:1s

Pulse Rate:

1. Measurement Range:25 ~ 250 bpm

2. Resolution:1bpm

3. Accuracy:±3 bpm (non-motion)

4. Alarm Range:25 ~ 250 bmp

5. Refreshing Rate:1s

ECG:

1. Lead mode:3-lead or 5-lead

2. Lead selection:I, II, III, AVR, AVL, AVF, V

3. HR range:15 ~ 300 bpm

4. ECG Waveform:2 channals

5. Accuracy:±2bpm or ±2%, which is greater

6. S-T segment detection range: -2.0mv ~ +2.0mv

7. Arrhythmia analysis: 13 kinds of arrhythmia

8. Alarm Range:15 ~ 300 bpm

NIBP:

1. Method:Oscillometry

2. Mode:Manual/Auto/Contiuous

3. Measurement Range:25 ~ 260mmHg

4. Atuo Measure Interval: 5, 10, 15, 30, 45, 60, 90 minutes

5. Resolution:1mmHg

6. Overpressure Protection: 300mmHg

7. Alarm range:25 ~260mmHg

mini ultrasound machine

equine ultrasound machine

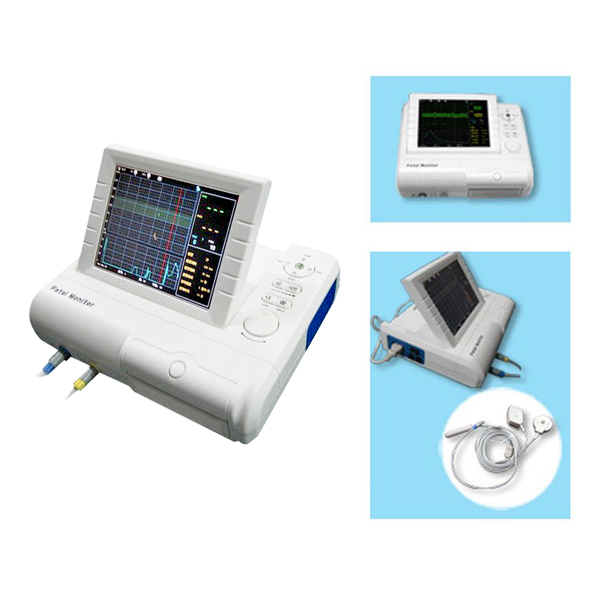

Single or Twins Ultrasound transducer Fetal Doppler Monitor Maternal Images
